Advantages:
Rich Interfaces: Features optional GMSL/POE/DIO expansion, supports 4G/5G/WiFi.
Anti-Interference Design: Enhanced anti-interference capability through improved signal isolation.
Wide Temperature Operation: Supports working temperatures from -40°C to 70°C.
Product Specifications:
Items | Specifications |
| AI Performance | 156 Tops（sparse）INT8 SUPER MODE |
| CPU | 8-core Arm® Cortex®-A78AE v8.2 64 位 CPU 2MB L2 + 4MB L3 |
| GPU | 1024 NVIDIA® CUDA® Core & 32 Tensor Core |
| AI Accelerator | 2x NVDLA（Max Opera Freq: 614 MHz，20 TOPS each (Sparse INT8)） |
| Memory | 16GB 128-bit LPDDR5 DRAM |
| Storage | M.2 2280 M-KEY x1 for M.2 NVME SSD Expension |
| SATA Drive Bay x1 for 2.5“ SATA Drive Expension | |
| Display | HDMI 2.0 x1 |
| I/O Configuration | USB3.0 Type-A x2 |
| Gigabit Ethernet x2 | |
| CAN x1 DB9 | |
| RS232/422/485 x2 DB9 | |
| DIO with DI x4 + DO x4 (optional) | |
| GMSL x4（optional） | |
| 1GBE POE x4（optional，802.3at） | |

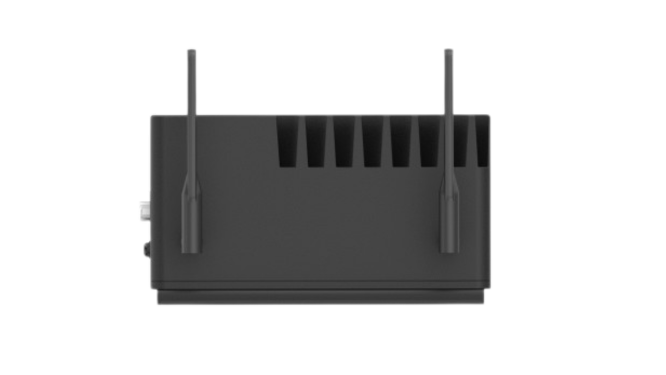

| Antenna x4 （optional） | |
| USB2.0 TYPE-C (for update F/W) | |
| Expansion | M.2 2230 E-KEY x1 (for WIFI) |
| M.2 3052 B-KEY x1（for 4G/5G） | |
| Nano SIM Socket x1 | |
| 2.5” SATA Drive bay x1 | |
| M.2 2280 M-KEY x1 | |
| Function Key | Power Button x1 |
| Recovery Button x1 | |
| Indicator | Storage LED x1 |
| Power LED x1 | |
| Power Supply | DC 12-36V |
| Power Type | Terminal Block 4PIN x1 |
| Operation Vibration | 3 Grms 5~500Hz |
| Operating Temperature | -20°C ~ 70°C（60~70℃ frequency reduction operation ） |
| -40°C ~ 70°C （optional） | |
| Storage Temperature | -40°C ~ 70°C |
| Humidity | 5~95% @ 40°C, non-condensing |

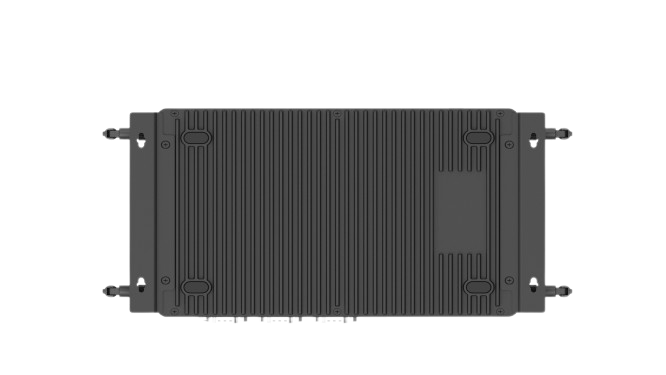

| Dimensions | 240x154x84（unit:mm） |
| Protection | IP50 |
